DA200 – 200 Series Double Angle

Galaxy Products 200 Series Double Angle Collets are interchangeable with all 200 DA collets. The picture displays a 200 series double angle collet on the right with the corresponding collet assembly on the left. All parts are made in USA and all sizes are available upon request. Click here to view the compatible caps and chucks for this collet.

  • A Diameter(in.): 0.539"
  • B Length(in.): 1.18"

200 Series Double Angle Collet

200 Series Double Angle Collets Compatible Tools

Galaxy Part #. Hole Size (in.) Dotco & Buckeye Erickson & Kennametal Lyndex Aro Ingersoll Rand Gardner Denver Cleco Chicago Pneumatic Sioux
D2-364 .0469"
D2-116 .0625"
D2-564 .0781"
D2-332 .0938" 203 200DA0094 020 006
D2-764 .1094"
D2-18 .1250" 204 200DA0125 020 008 32968-1 G140 700 2 528804
D2-964 .1406"
D2-532 .1562" 205 200DA0156 020 010 32968-2 528805
D2-1164 .1719" 215
D2-316 .1875" 206 200DA0188 020 012 32968-3 528806 865423-8
D2-1364 .2031"
D2-732 .2188" 207 200DA0219 020 014 32968-4 528807
D2-1564 .2344"
D2-14 .2500" 208 200DA0250 020 016 32968-5 G160HD 700 1/4 525273 865501-1 C119729 21110
D2-1764 .2656"
D2-932 .2812" 209 200DA0281 020 018 32968-6
D2-1964 .2969"
D2-516 .3125" 210 200DA0312 020 020 32968-7 DG121 700 MB 525809 847811-7
D2-2164 .3281"
D2-1132 .3438" 211 020 022 32968-8
D2-2364 .3594"
D2-38 .3750" 212 200DA0375 020 024 32968-9 DG120 700 G6 525274 847805-9 C119730
D2-6mm .2362" 213
D2-8mm .3150" 216 020 011

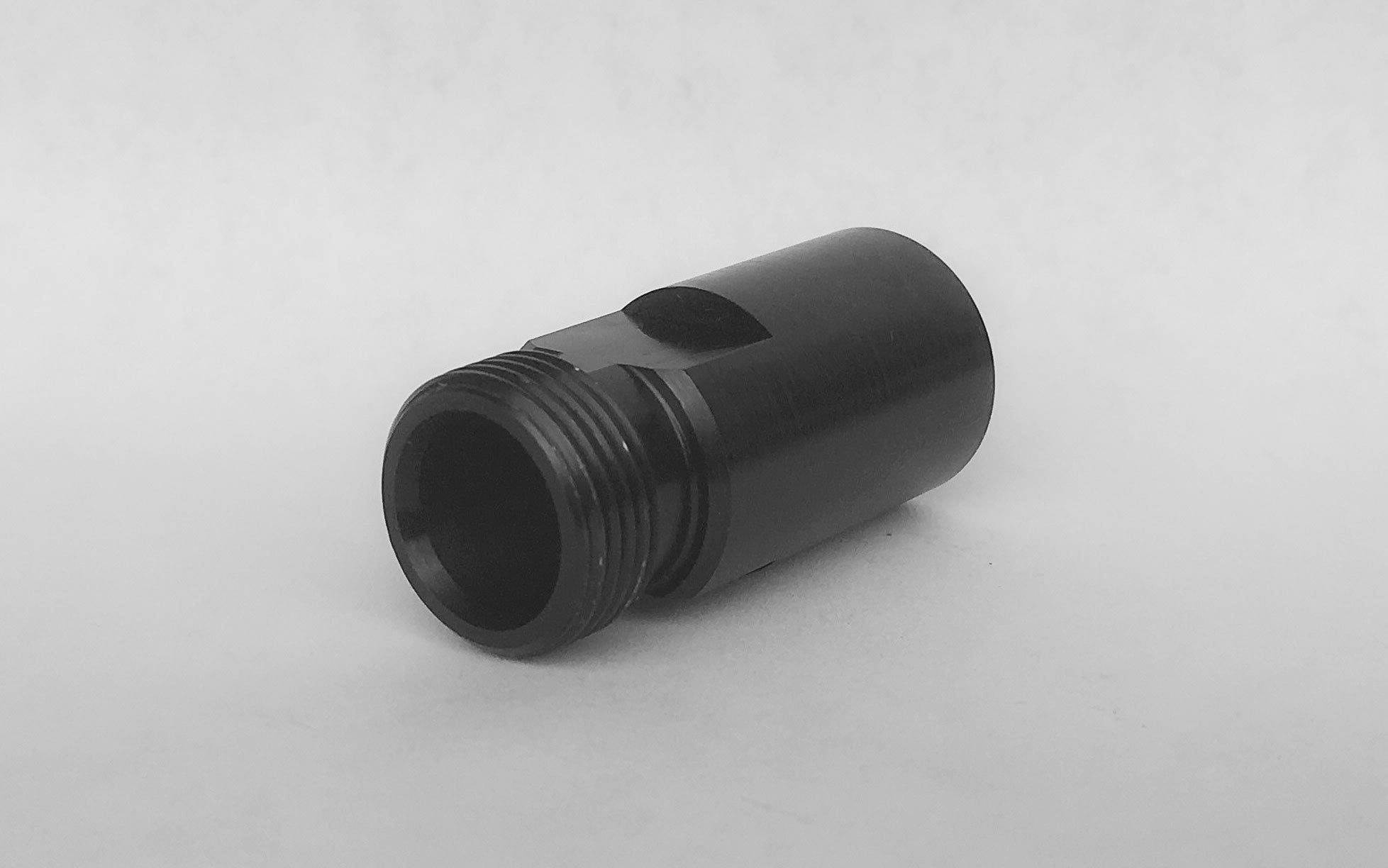

Compatible Parts
